The DT Truck 196 represents the zenith of our articulated truck-mounted machines, with an astonishing working height of 197 feet. In every other aspect, it embodies the excellence and versatility that are hallmarks of our equipment.
The DT Truck 196 represents the zenith of our articulated truck-mounted machines, with an astonishing working height of 197 feet. In every other aspect, it embodies the excellence and versatility that are hallmarks of our equipment.
DT Truck 196

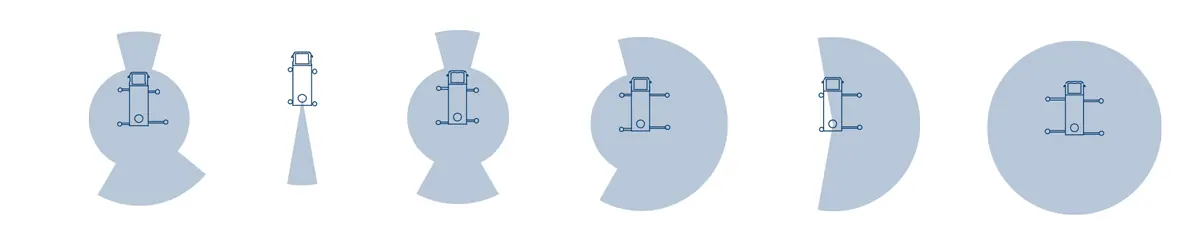

With a semicircular working area and outstanding outreach, overreach, and negative reach capabilities, the DT Truck 196 is a true powerhouse for a wide range of applications. Like all our machines, it comes fully equipped with a comprehensive selection of accessories to suit your specific needs. One exceptional feature of the DT Truck 196 is its compatibility with trucks featuring a Gross Vehicle Weight (GVW) starting as low as 39683 pounds, a remarkably low threshold in the industry. This adaptability ensures that the DT Truck 196 can access even the most challenging elevated locations with ease, making it the ideal choice for demanding tasks at substantial heights.
Minimum GVW: 39683lbs
Max. working height: 197ft
Negative work: -46ft
Up and over clearance: 105ft
Horizontal outreach: 95ft
Platform height: 190ft 3in
Basket capacity: 882lbs
Stabilization: H+H
Hook capacity: 970lbs
Turret rotation: 1440°
Basket dimensions: 7′10″X2′11″X3′7″
Hook capacity: 7′10″X3′X3′7″
Basket rotation: 90° + 90°
Platform controls: ELECTRONIC
