Compact Power: with Double Telescopic (DT) technology, the DT Truck 50 offers a wide working area and impressive versatility. Compact yet powerful, it’s crane-certified and ideal for municipalities and private businesses alike.
Compact Versatility
DT Truck 50

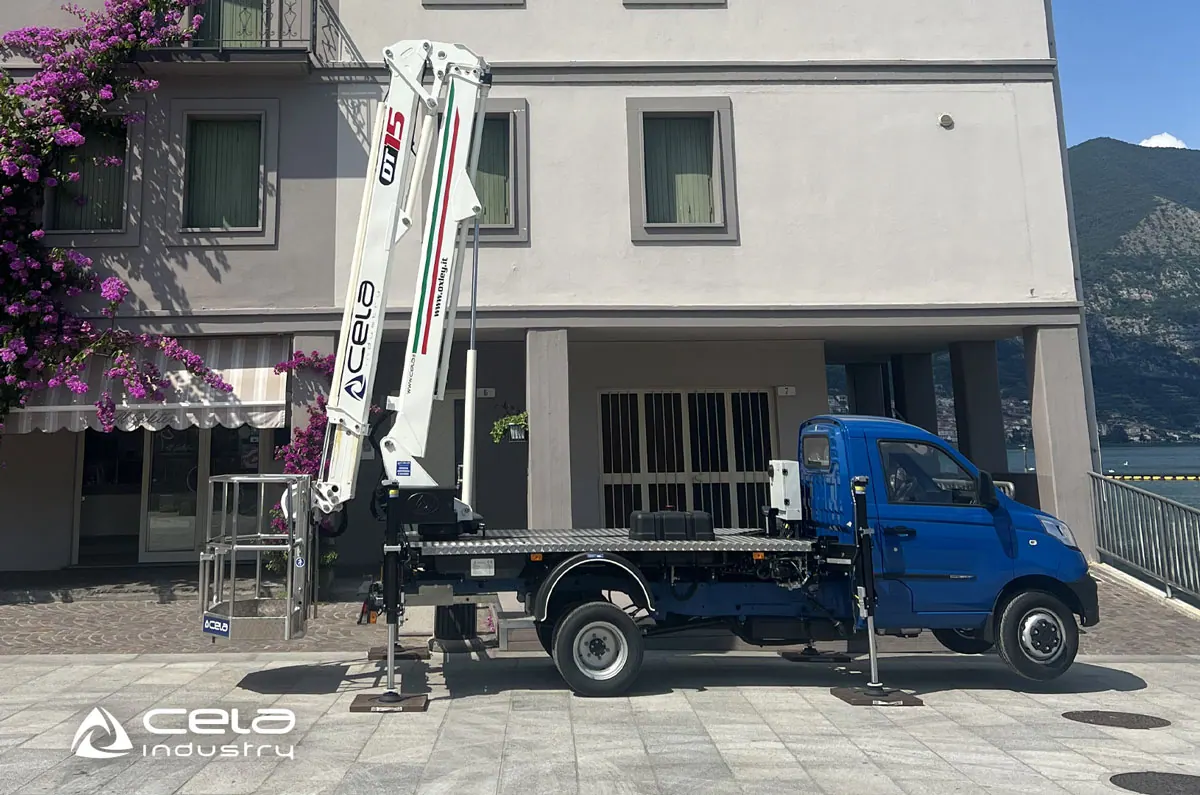

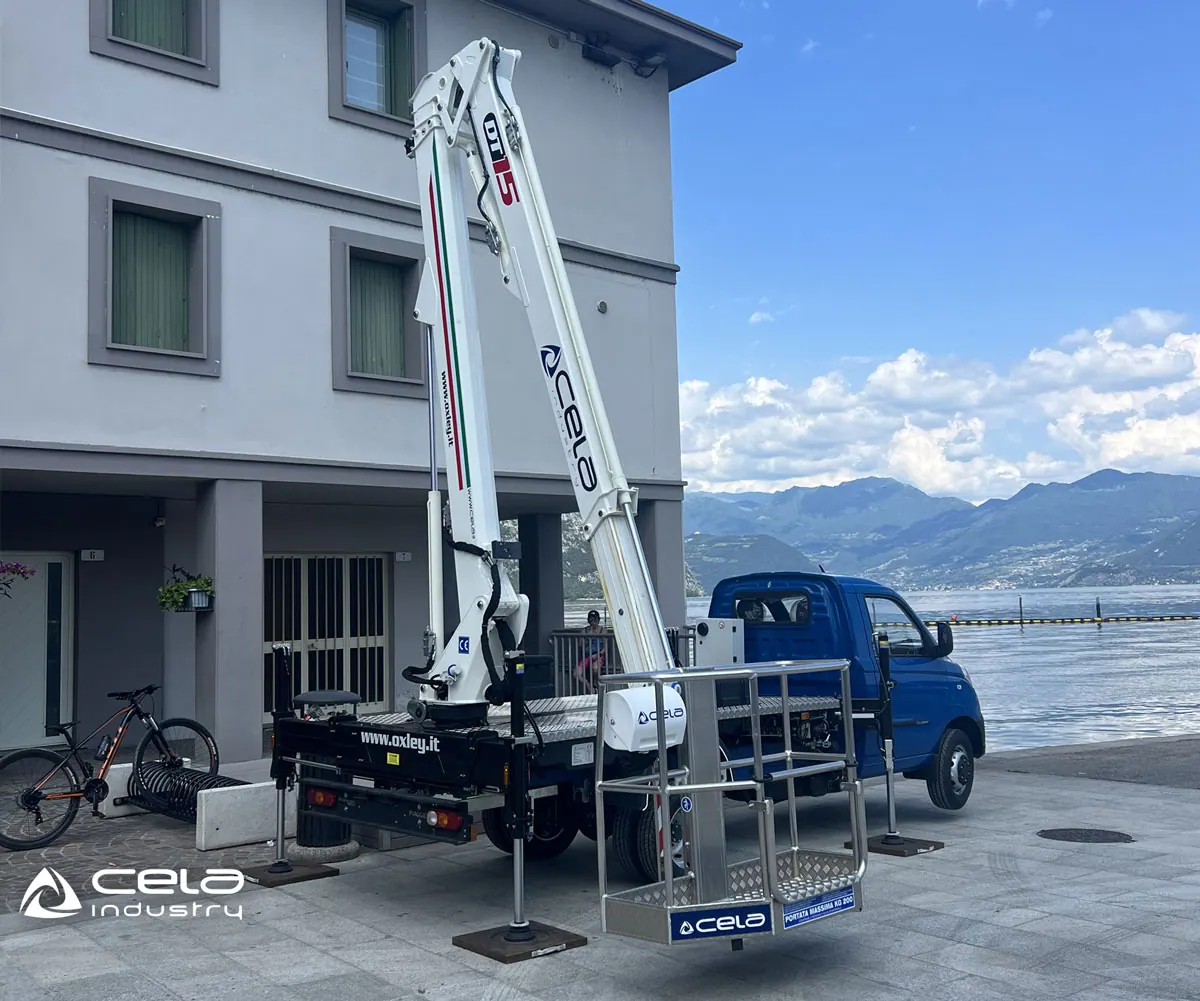

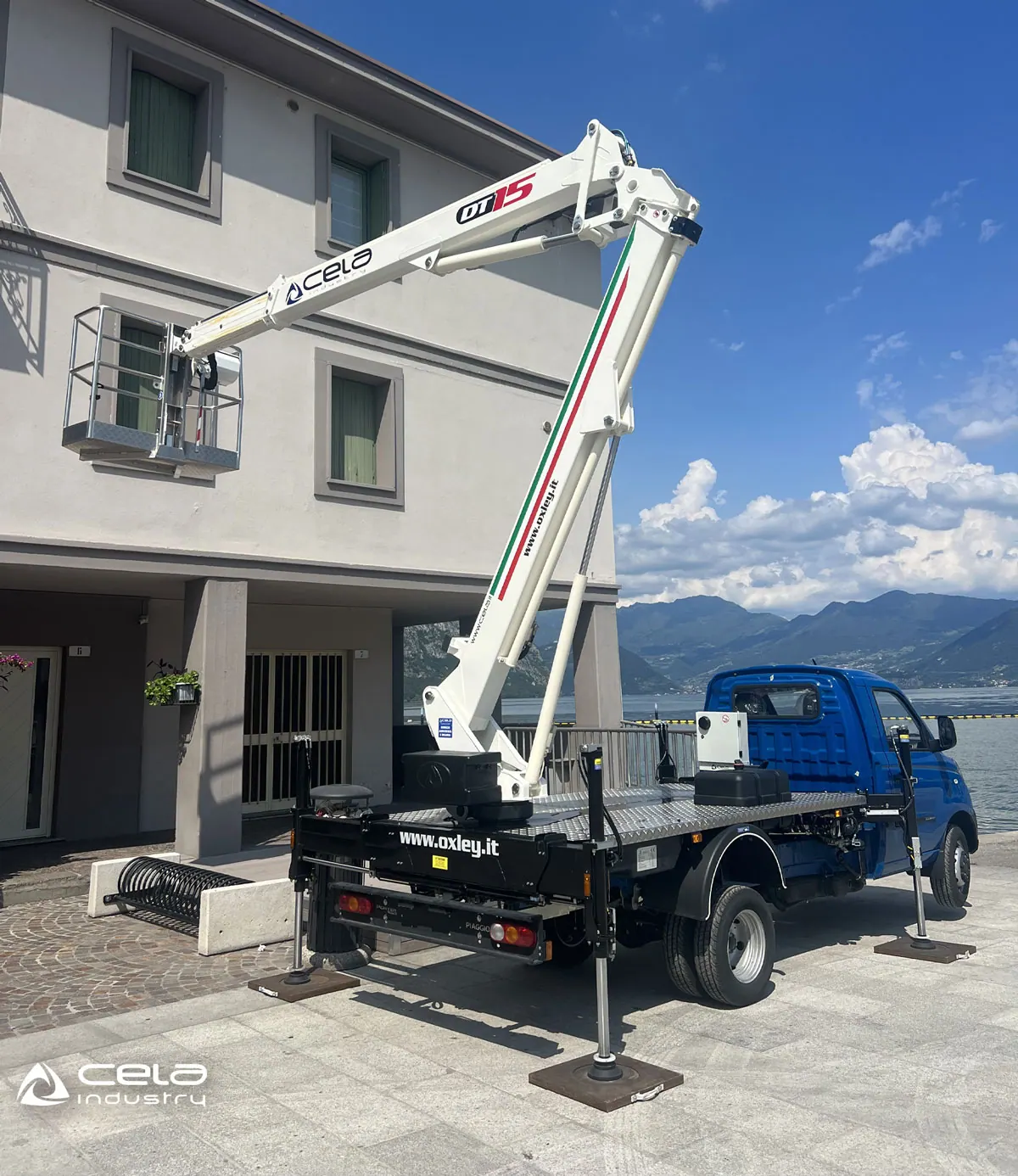

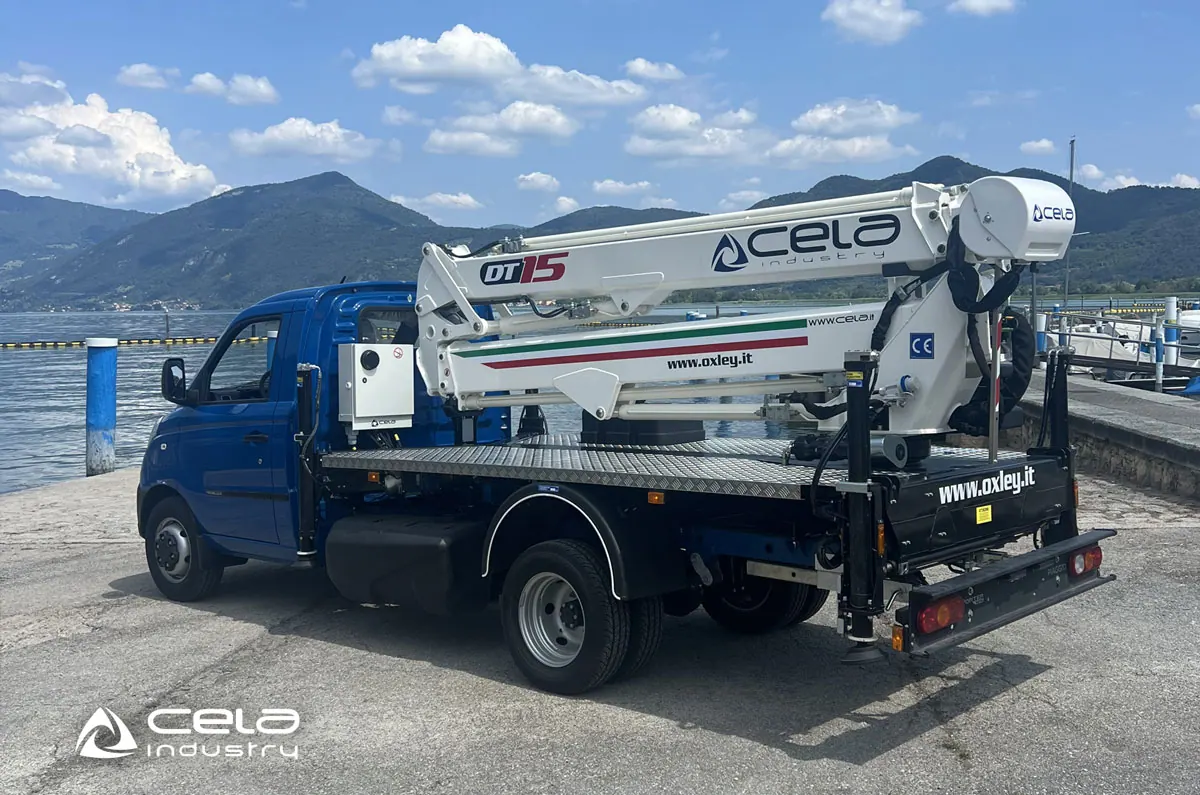

The DT Truck 50 features our exclusive Double Telescopic (DT) technology, offering an expansive and nearly semicircular working area. This means you can reach more points and work more efficiently at height.

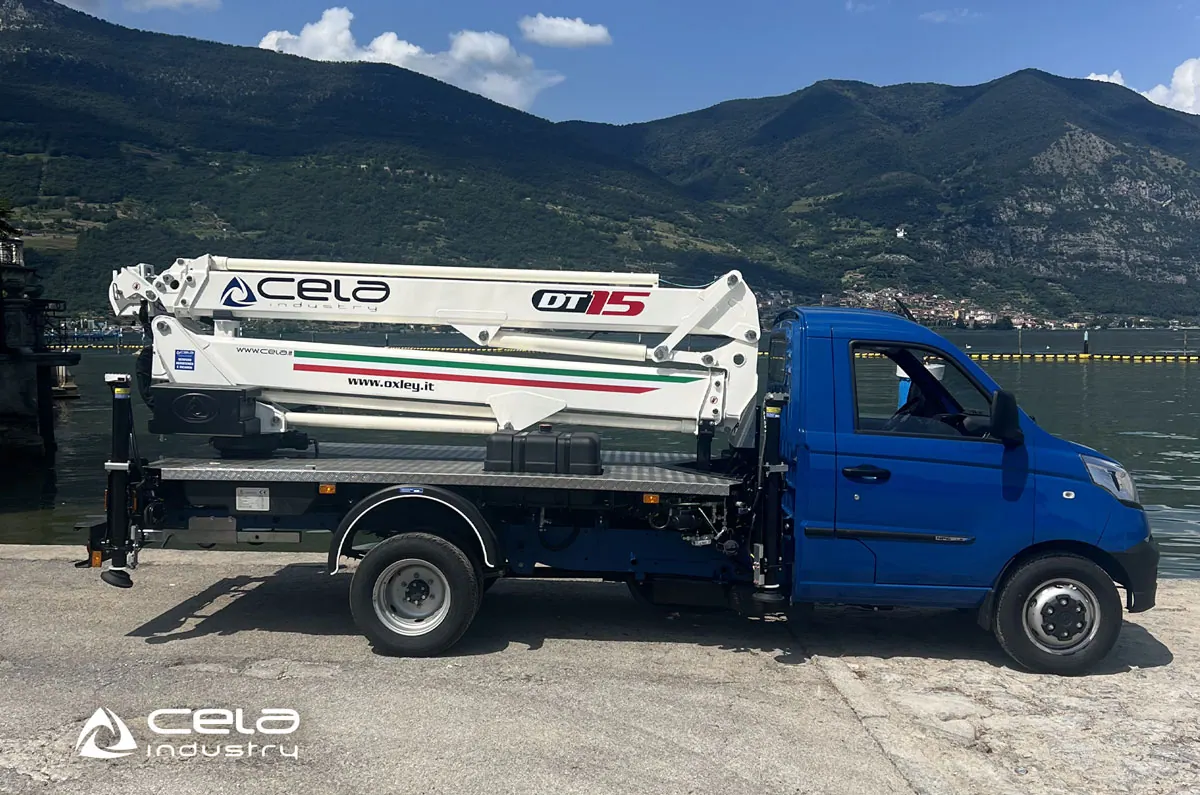

This aerial working platform is remarkably compact and can be fitted on commercial trucks with a minimum Gross Vehicle Weight (GVW) of 6173 lbs. Despite its small size, it can accommodate a basket up to 5′9″, boasting a generous payload capacity of 507lbs.
Like all our machines, the DT Truck 50 is crane-certified, allowing for hook and winch attachments. This flexibility extends its usability across various applications, making it a top choice for both municipalities and private businesses.

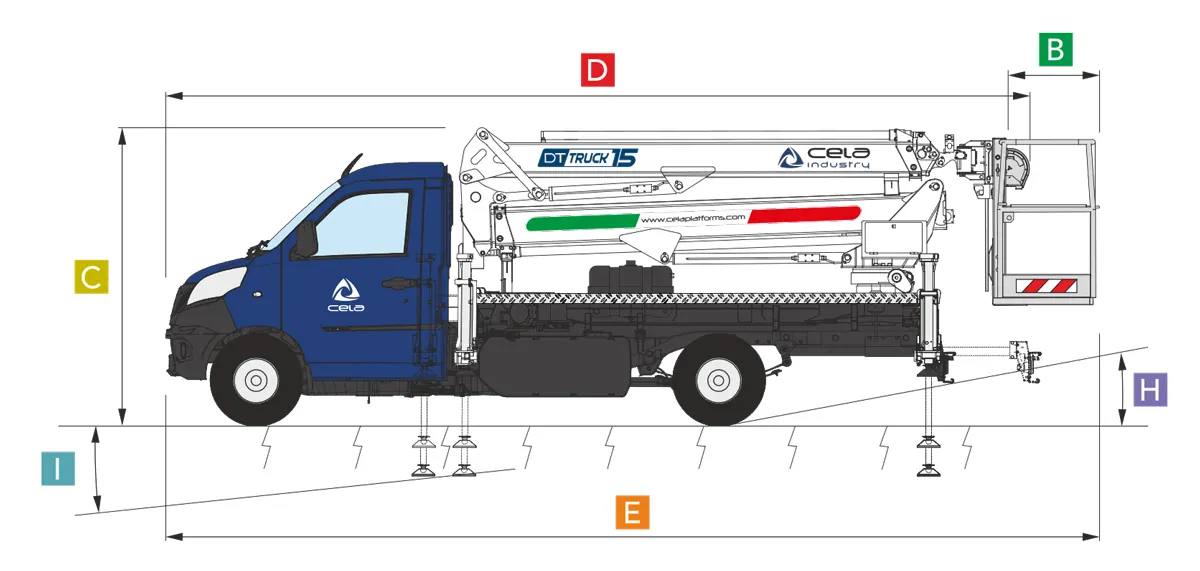

Minimum GVW: 6173lbs

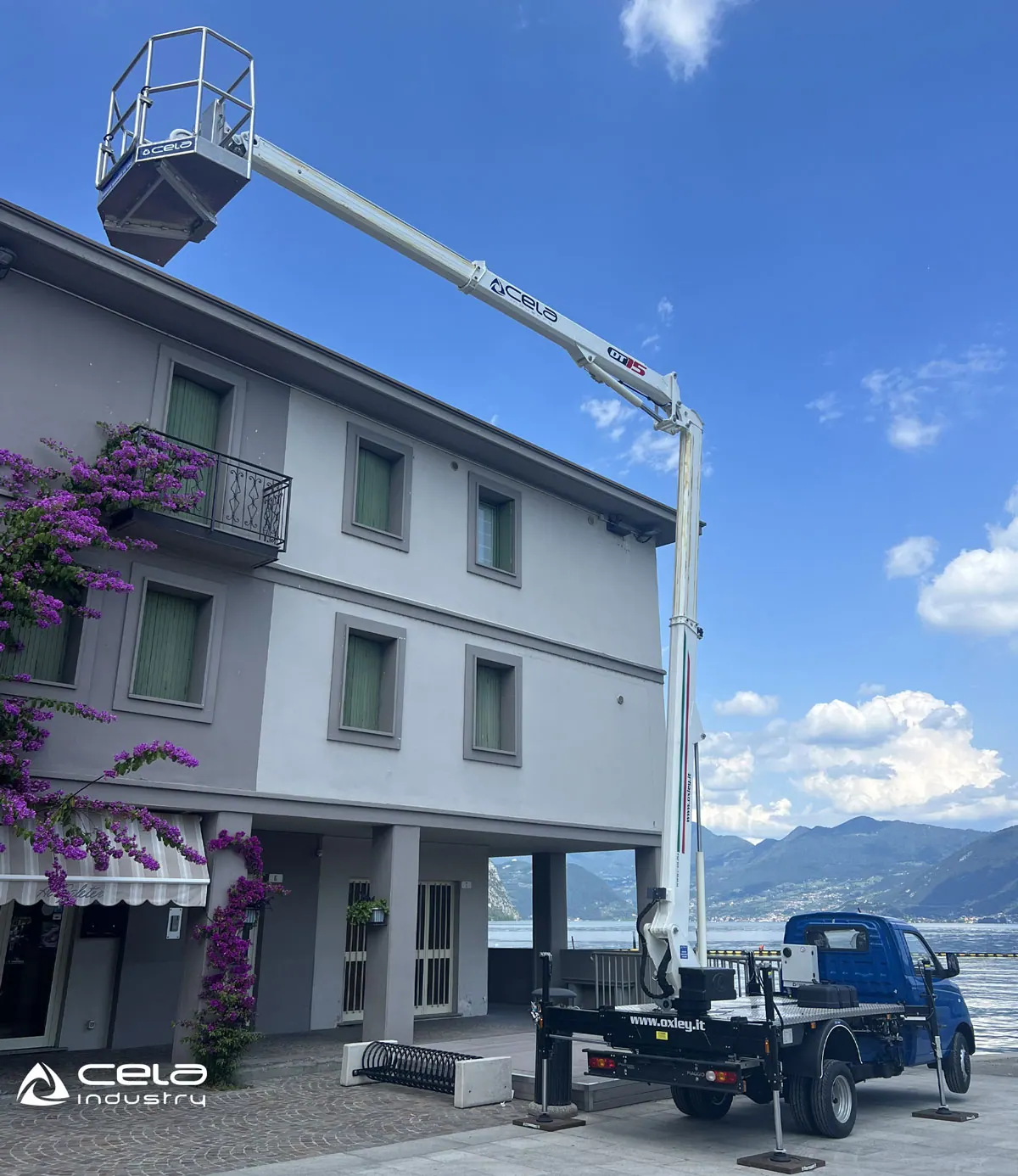

Max. working height: 50ft
Negative work: -6ft 7in
Up and over clearance: 26ft 3in
Horizontal outreach: 23ft
Platform height: 50ft
Basket capacity: 507lbs

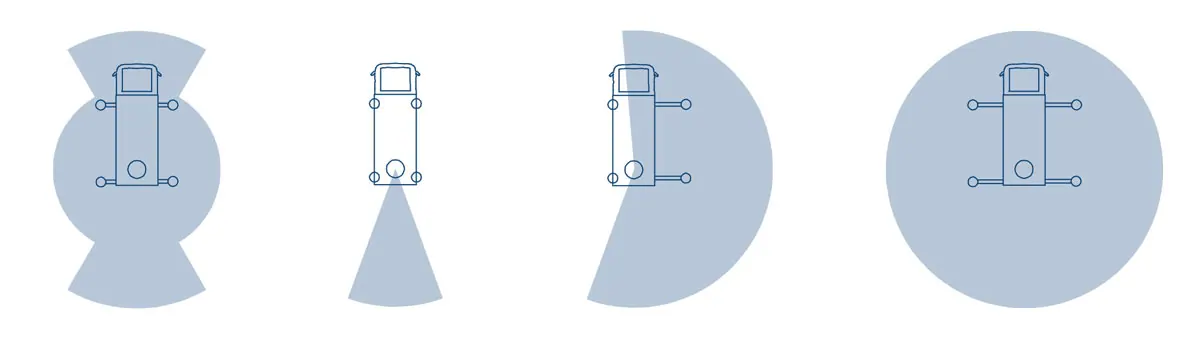

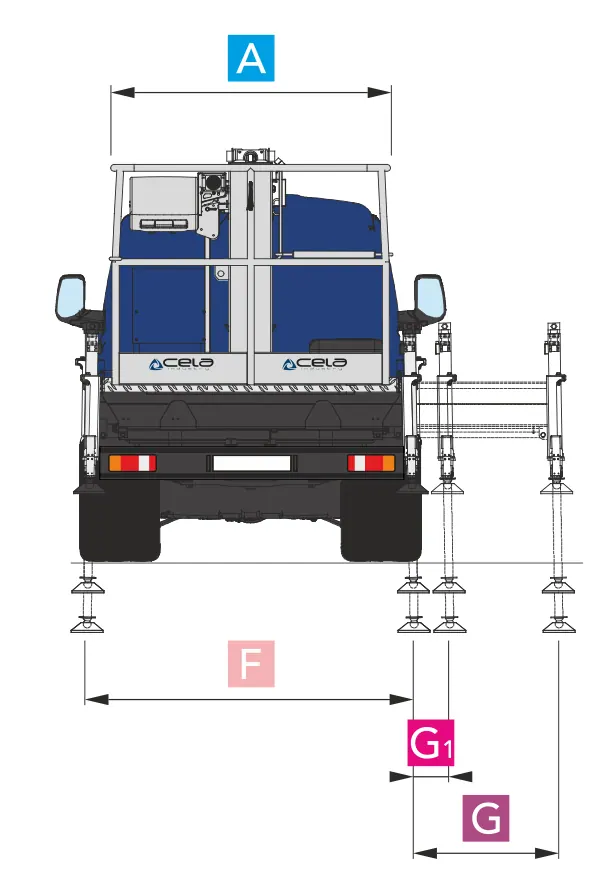

Stabilization: H+H
Hook capacity: 573lbs
Turret rotation: 720°

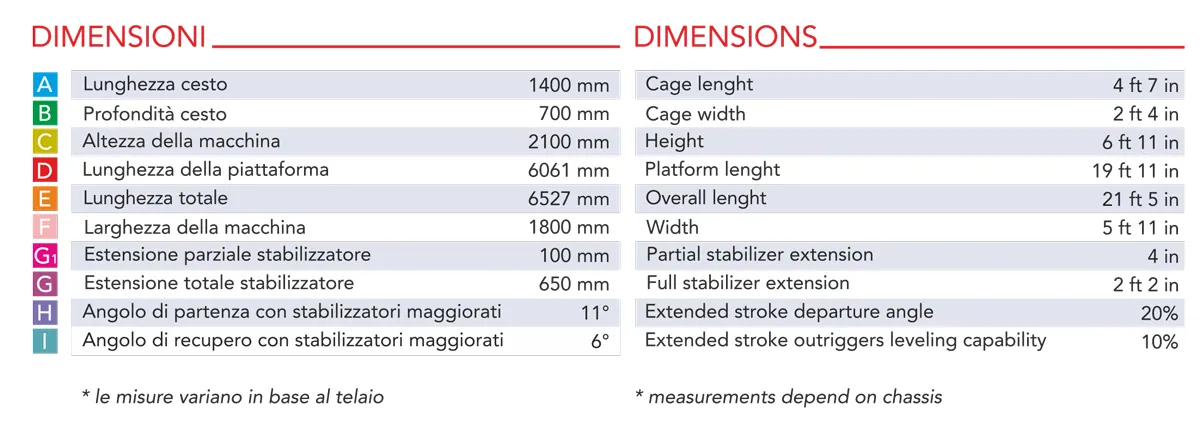

Basket dimensions: 4′7″X2′4″X3′7″
Basket rotation: 90° + 90°
Platform controls: ELECTRONIC
