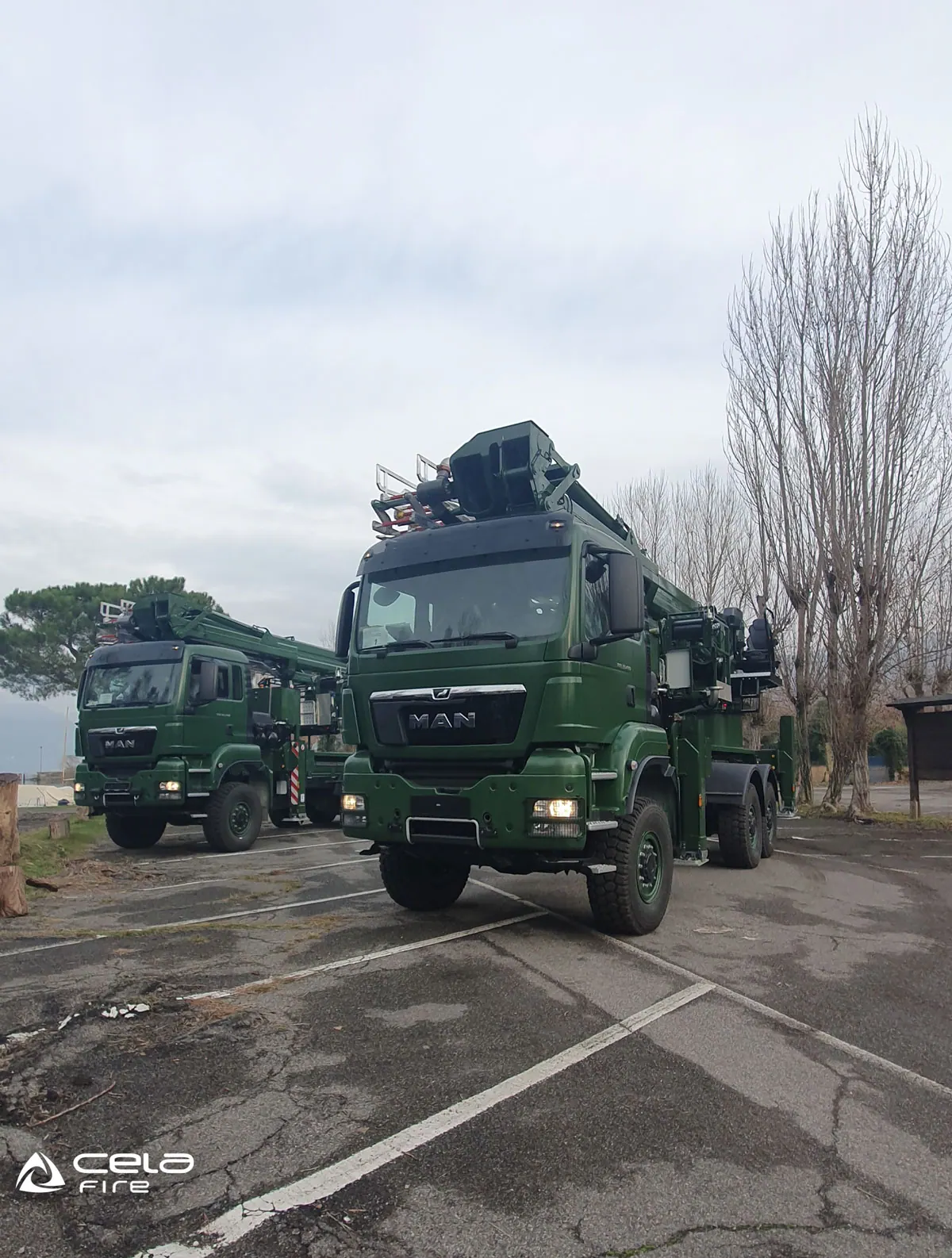

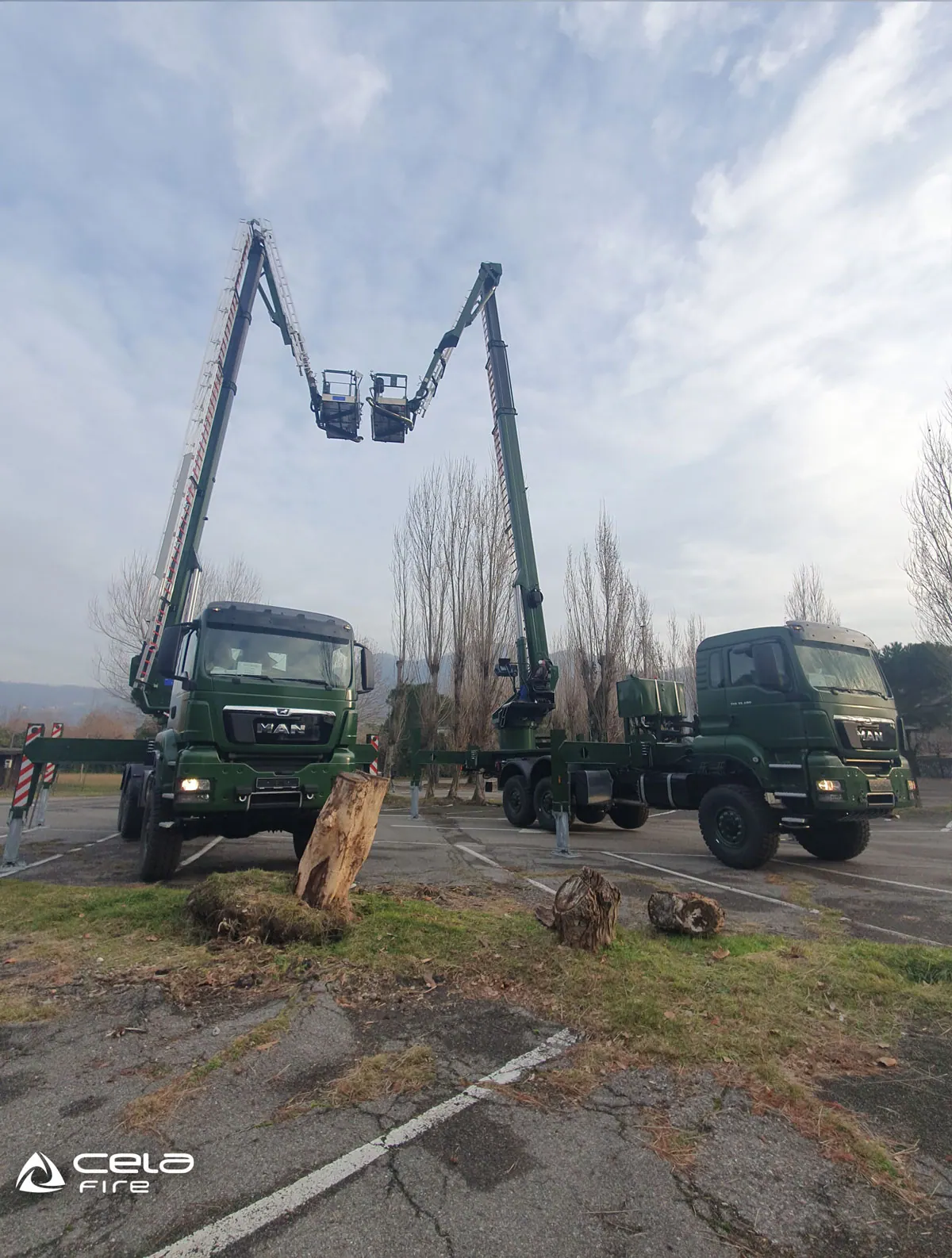

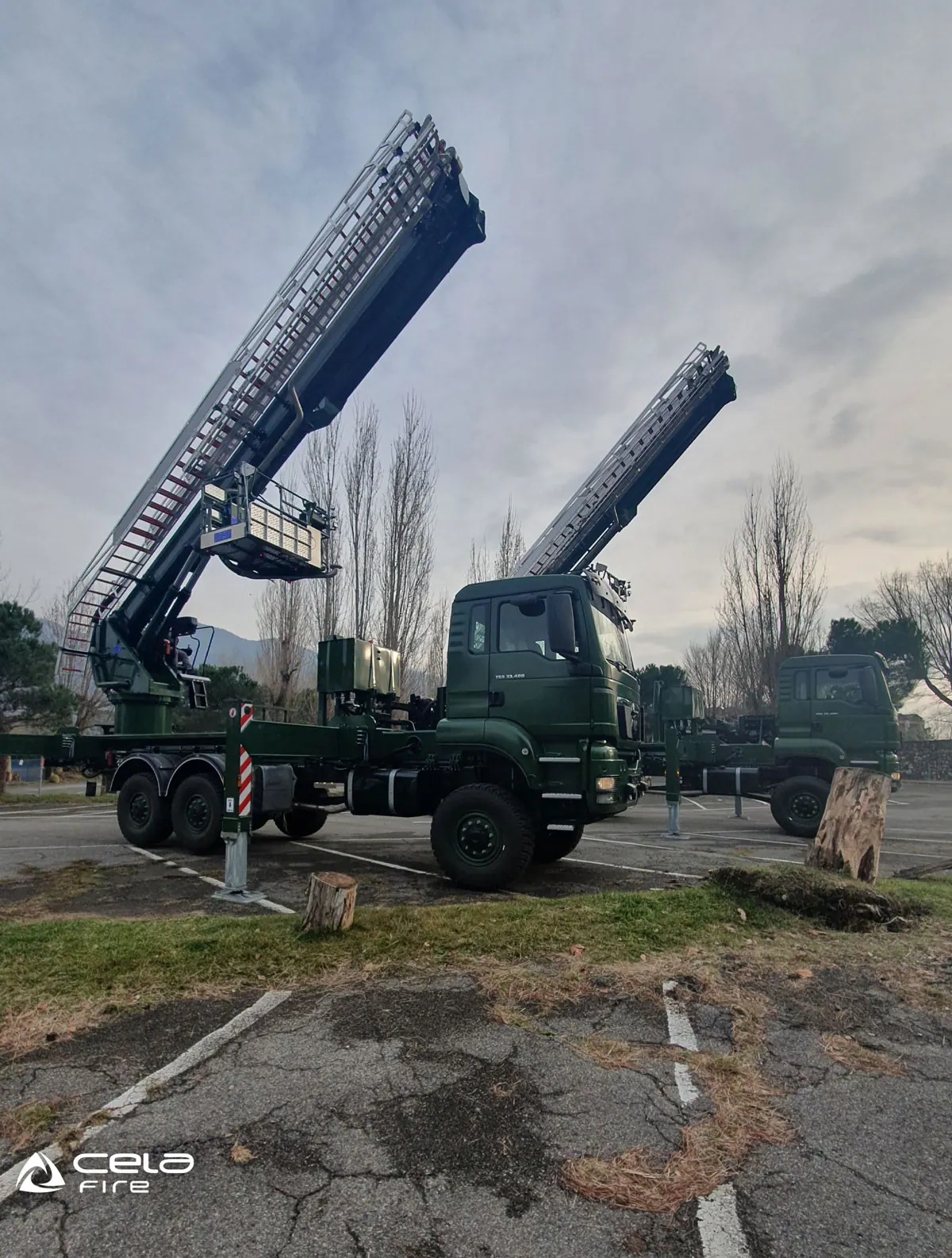

Cela Fire ALP330X

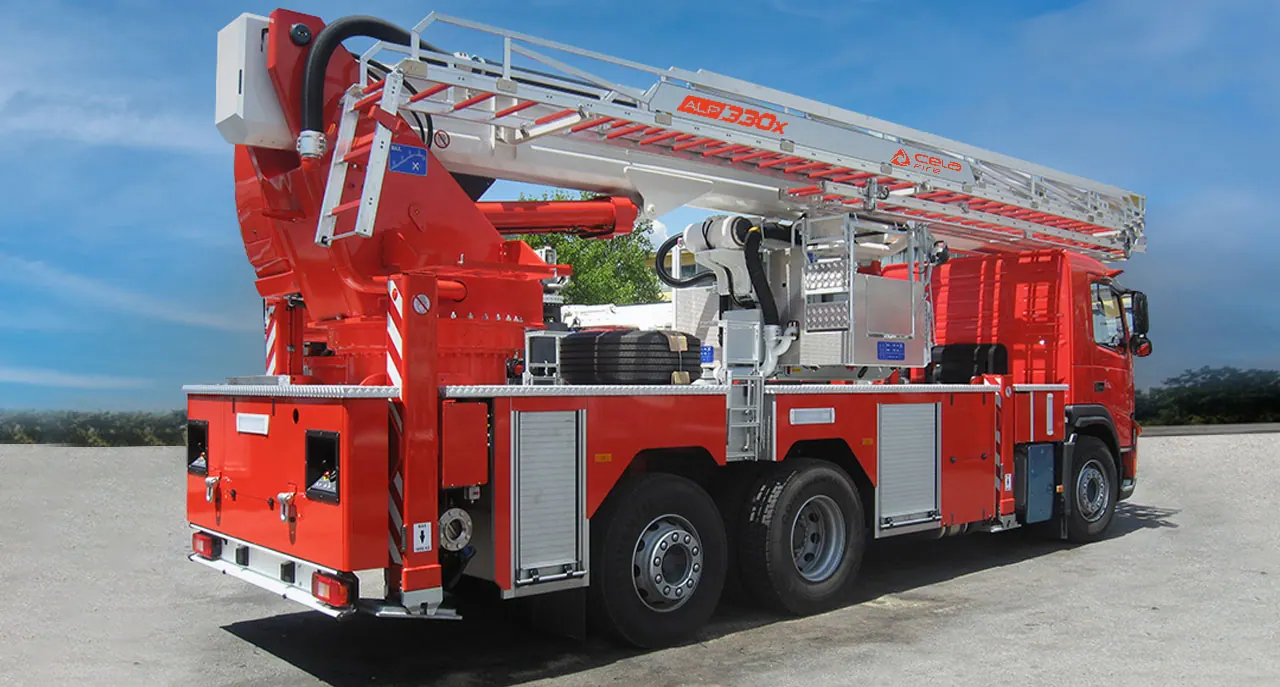

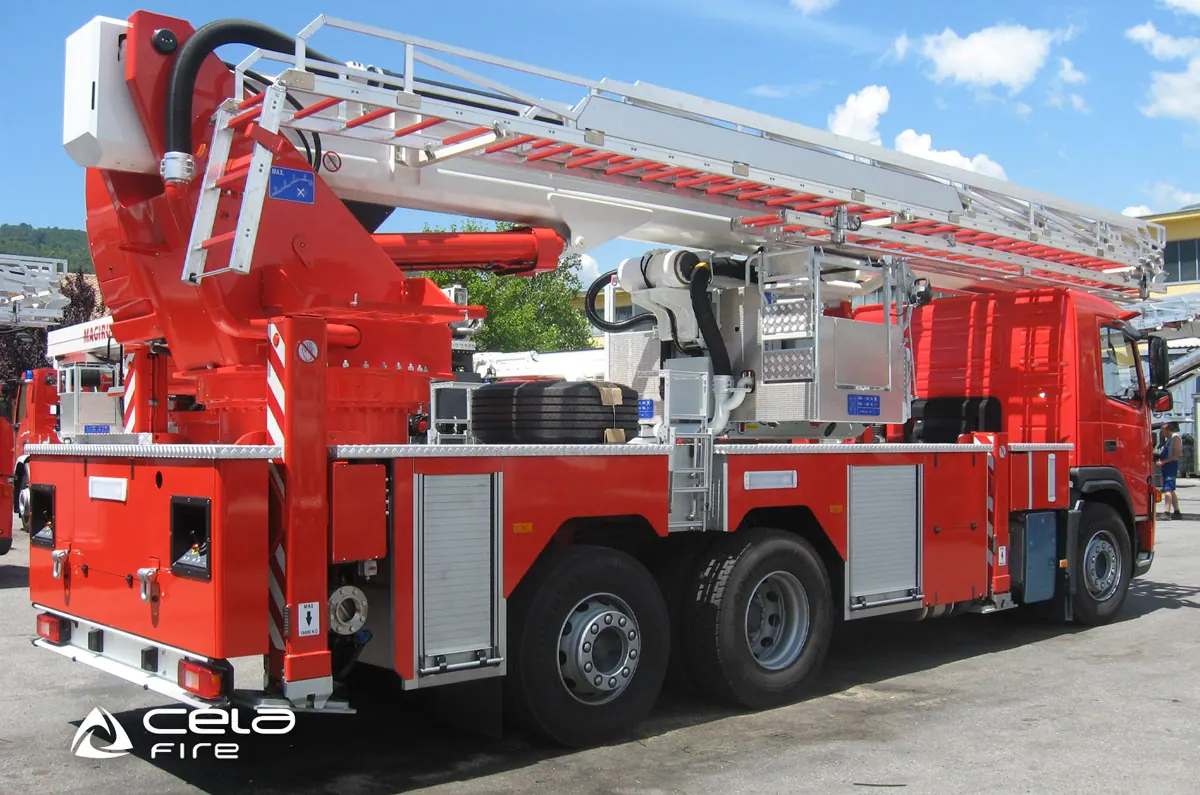

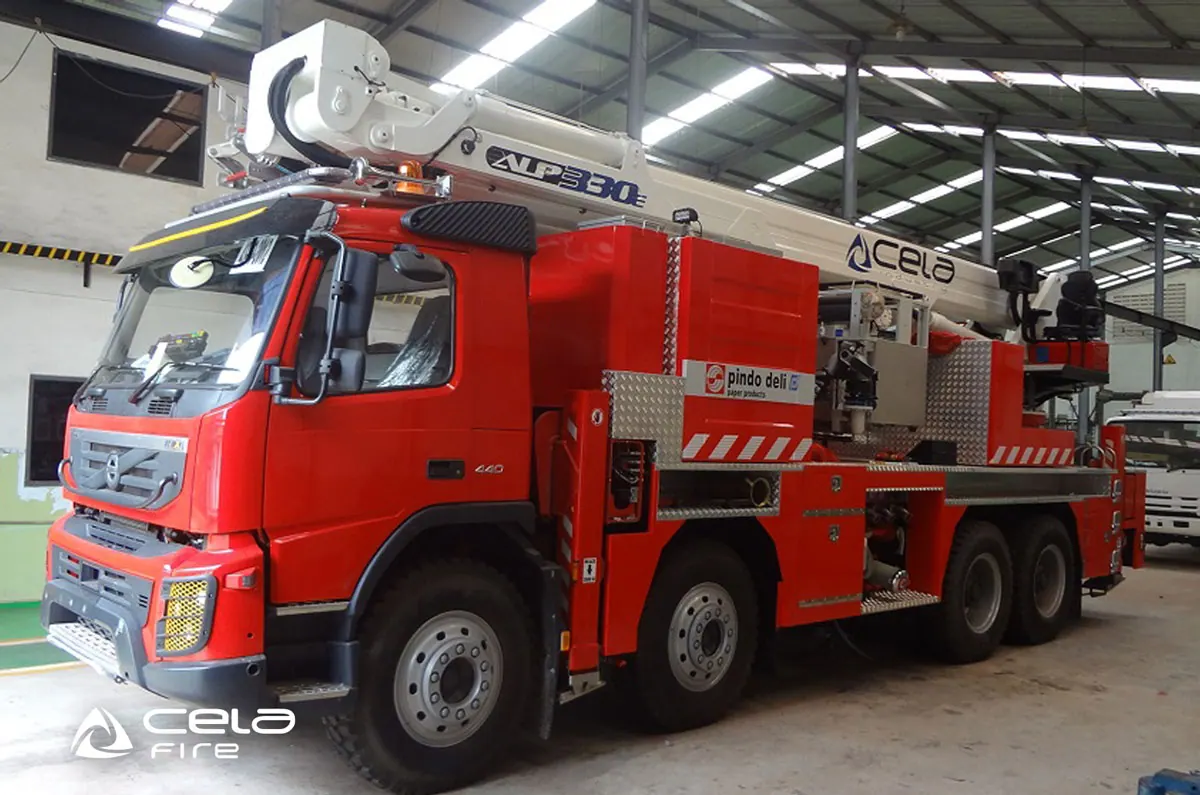

Aerial ladder platforms ALP330X

Engineered for toughness, the ALP 330X is constructed to withstand the most demanding firefighting and rescue operations. Its heavy-duty build ensures longevity and reliability.
With an extended reach capability, the ALP 330X allows you to access challenging heights and provide vital support in high-rise firefighting and rescue scenarios. Reach further, act faster.
Boasting an impressive 500 kg load capacity, this ALP offers unmatched space and strength to transport a wide range of firefighting equipment, tools, and resources. No need to make multiple trips.
The ALP 330X is a versatile asset in your firefighting arsenal, suitable for a wide range of applications, including high-rise firefighting, rescue missions, and specialized operations.

Applications:

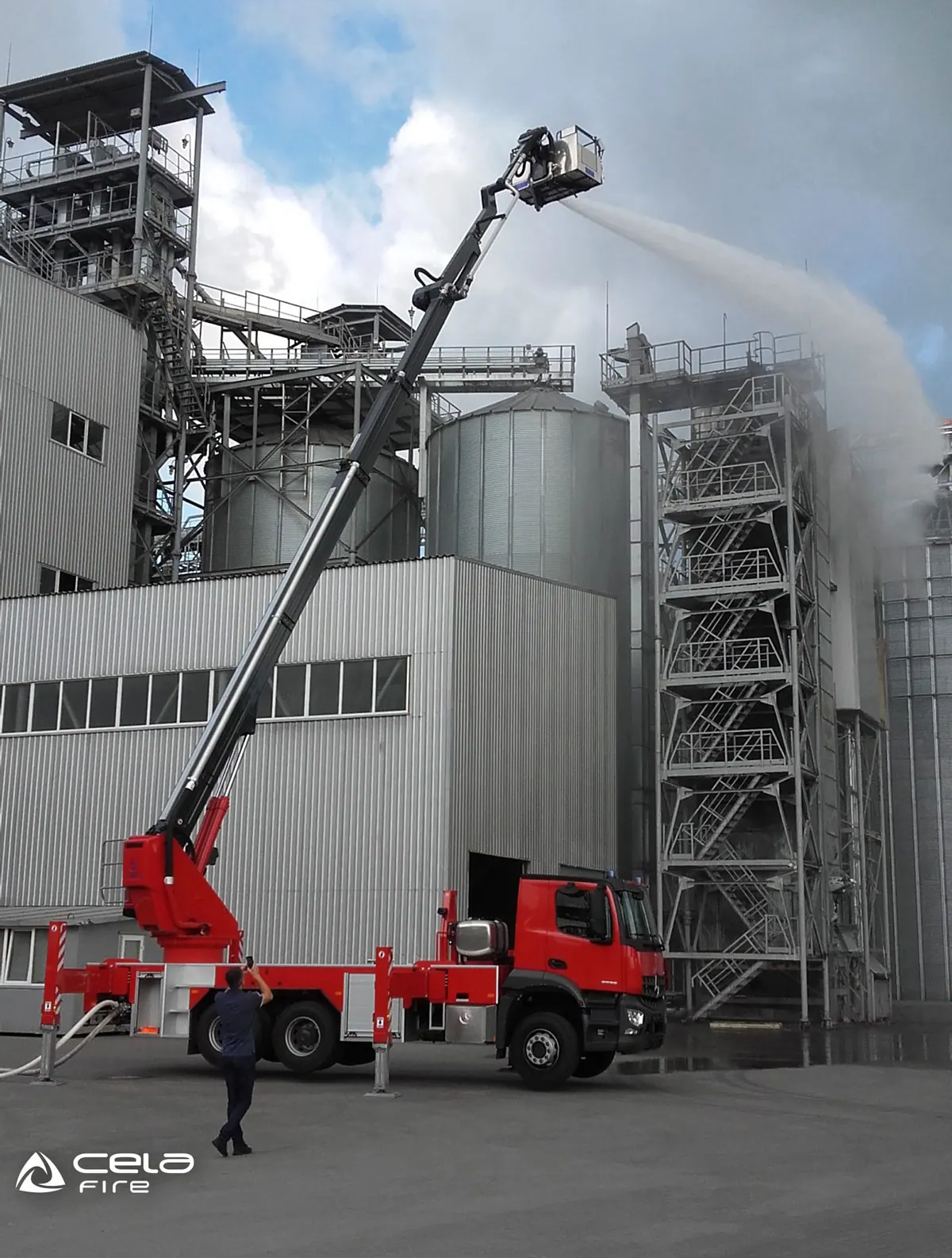

– High-rise firefighting and rescue missions.
– Heavy equipment and resource transport.
– Rugged and demanding firefighting scenarios.
– When strength and reach matter, trust the ALP 330X to deliver in critical situations.

Minimum GVW: 26T

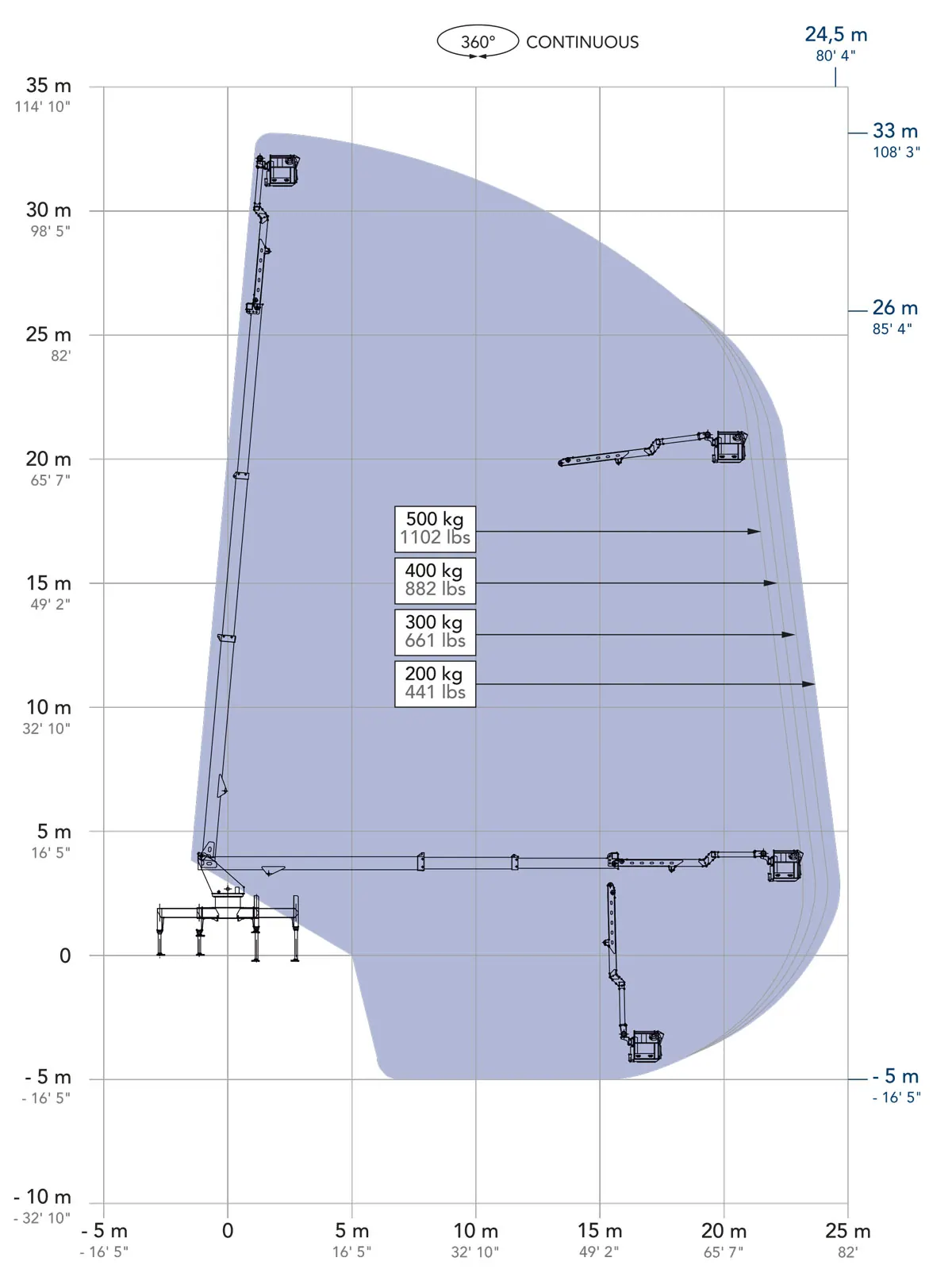

Max. working height: 33m

Negative work: -5m

Up and over clearance: 26m

Horizontal outreach: 24,5m

Lift capacity: 500Kg

Water capacity: 3800l/min

Operating wind speed: 14m/s

Rescue cage size: 2000x1000x1100mm

Foldable front platform: 1360×520mm

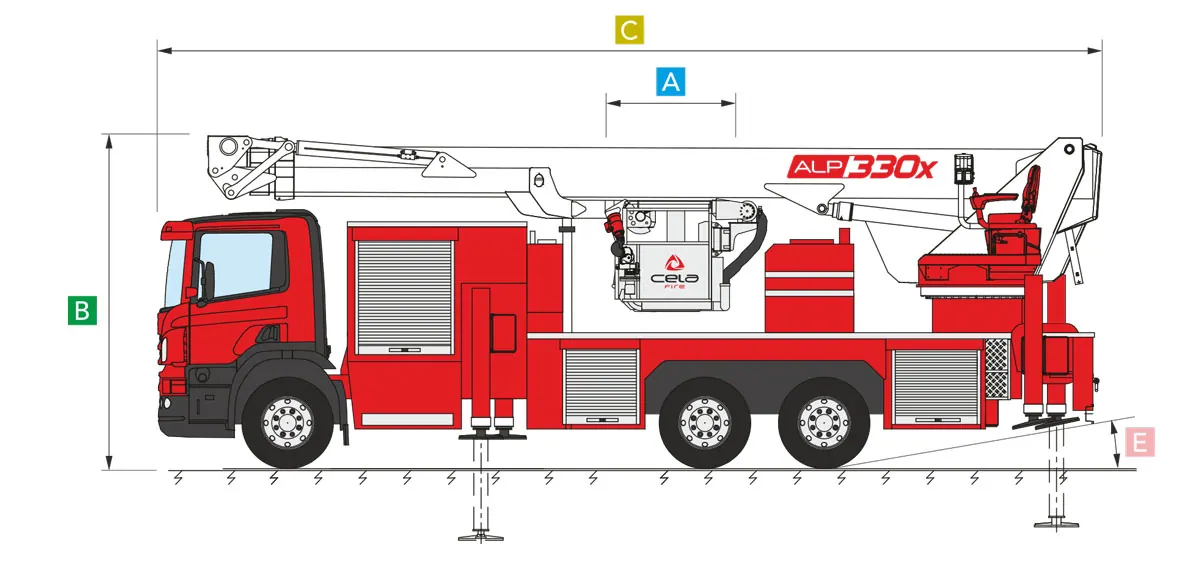

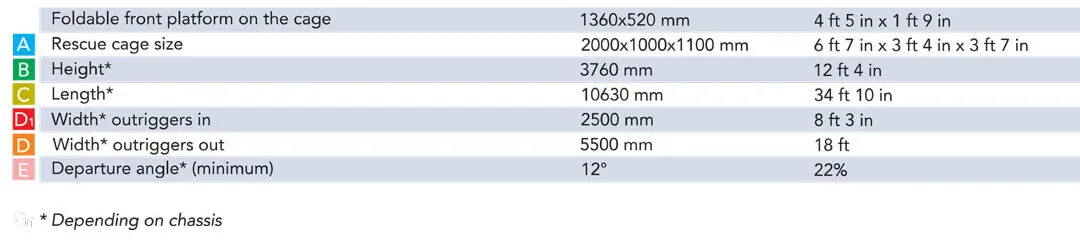

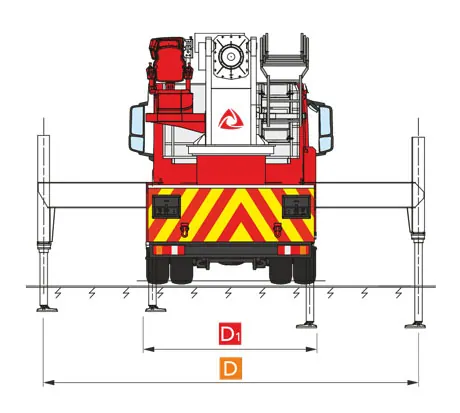

Cela Fire ALP330X technical data
Cela Aerial ladder platforms ALP330X technical data
Cela Aerial ladder platforms ALP330X technical data
